Note: The latest version of our .

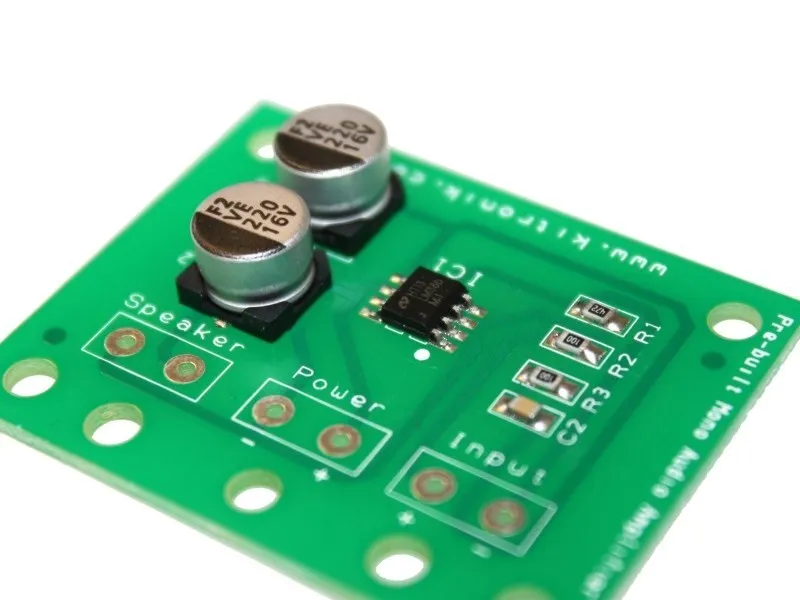

Our best selling amplifier kit has had an upgrade and a facelift. Version 2.0 of our Pre-built Mono Amplifier Kit has a brand new IC and we've also made all of the components suraface mount for a neater design.

This audio amplifier kit can be used with any personal stereo equipment, including MP3 players. It uses the very polular LM836 audio amplifier IC which can output 0.7W of power. The kit is supplied with a PP3 battery clip and can run off any voltage from 4 to 15 volts.

Also supplied is a pre-built jack cable.

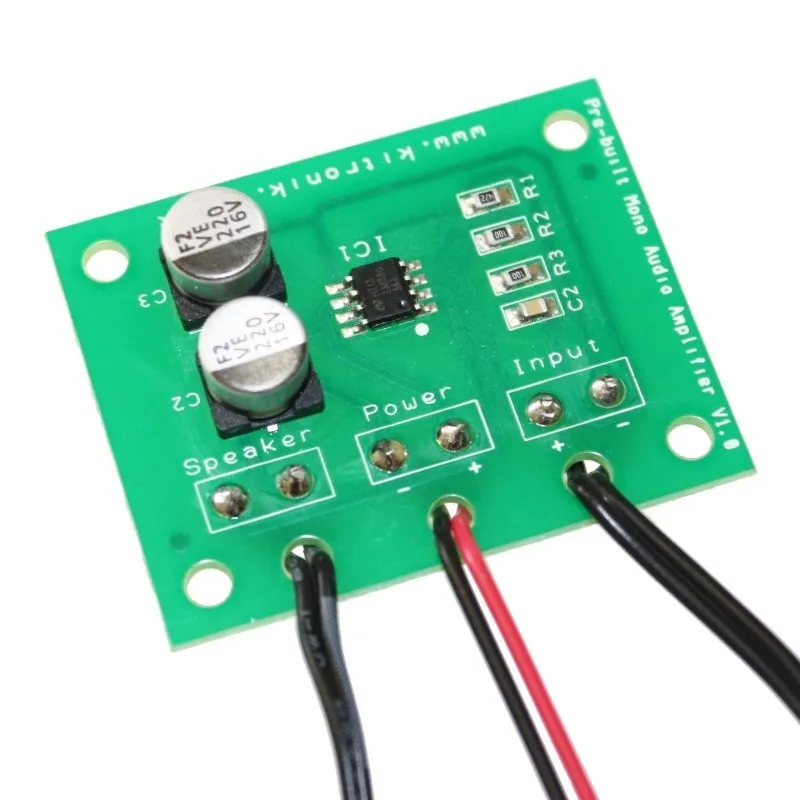

All that is required is to solder the jack lead, speaker & power clip to the board and you are good to go.

Features:

• Pre-built kit allows you to concentrate on product design rather than assembly.
• Works with a wide variety of mp3 players, phones and computer equipment.

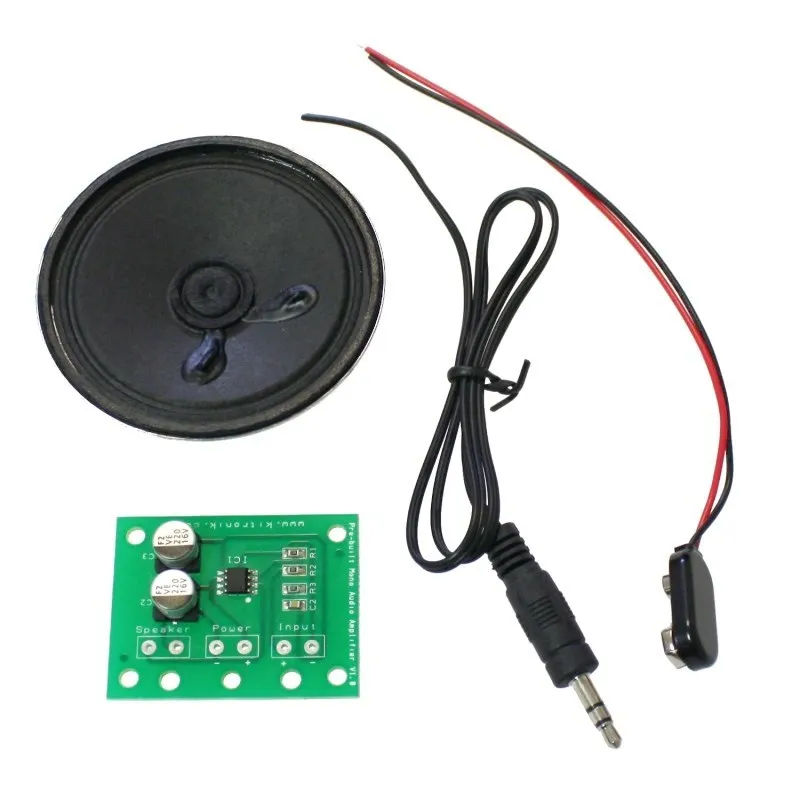

Contents:

• 1 x Pre-Built Mono MP3 Amplifier.
• 1 x .
• 1 x .
• 1 x .

Dimensions:

• PCB Length: 45.5mm.
• PCB Width: 35.5mm.

Requires:

• Either: .
• Or: .
• .
• .
• .

Resources:

•  (Including Build Instructions).
•  (Including Essentials).
• .
• .
• Please note if using 2D Design the .dxf file can be opened by using File -> Import.
• The mono amp case cutting data files are licensed under a .
