This vertical form filling sealing machine is used to package bagged granule or block shape material like coffee bean,broccoli, biscuit etc.It is equipped with Z type elevator which can supply material in time.This machine is widely used in food,daily chemical industries.

Parameter

• Model: ZS-GW10

• Power supply: 380V 50HZ

• Power: 5.5 kW

• Air source: 0.3cbm/min, 0.65Mpa

• Sealing method: back side sealing

• Measurement range: 500-3000g

• Bag size: length 100-400mm, width 100-300mm

• Film width: Max 630mm

• Film thickness: 6-12C

• Packing speed: 15-30 packs/min

• Machine size: About 6000*5000*5000mm

• Packing weight: About 1800KG

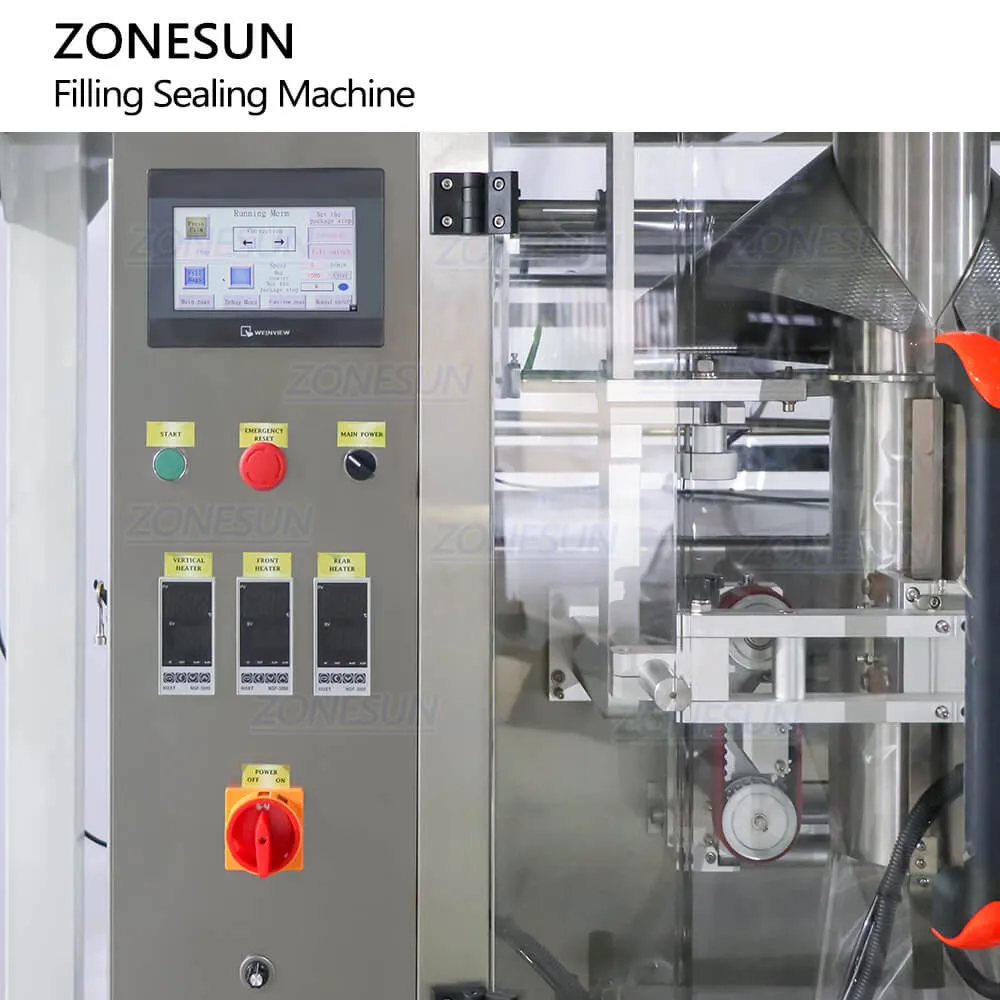

Equipped with touch screen control panel, it is more convenient when debugging machine.Visual data helps to watch working status in time and easily.Different kinds of operation language can be customzied as needed.

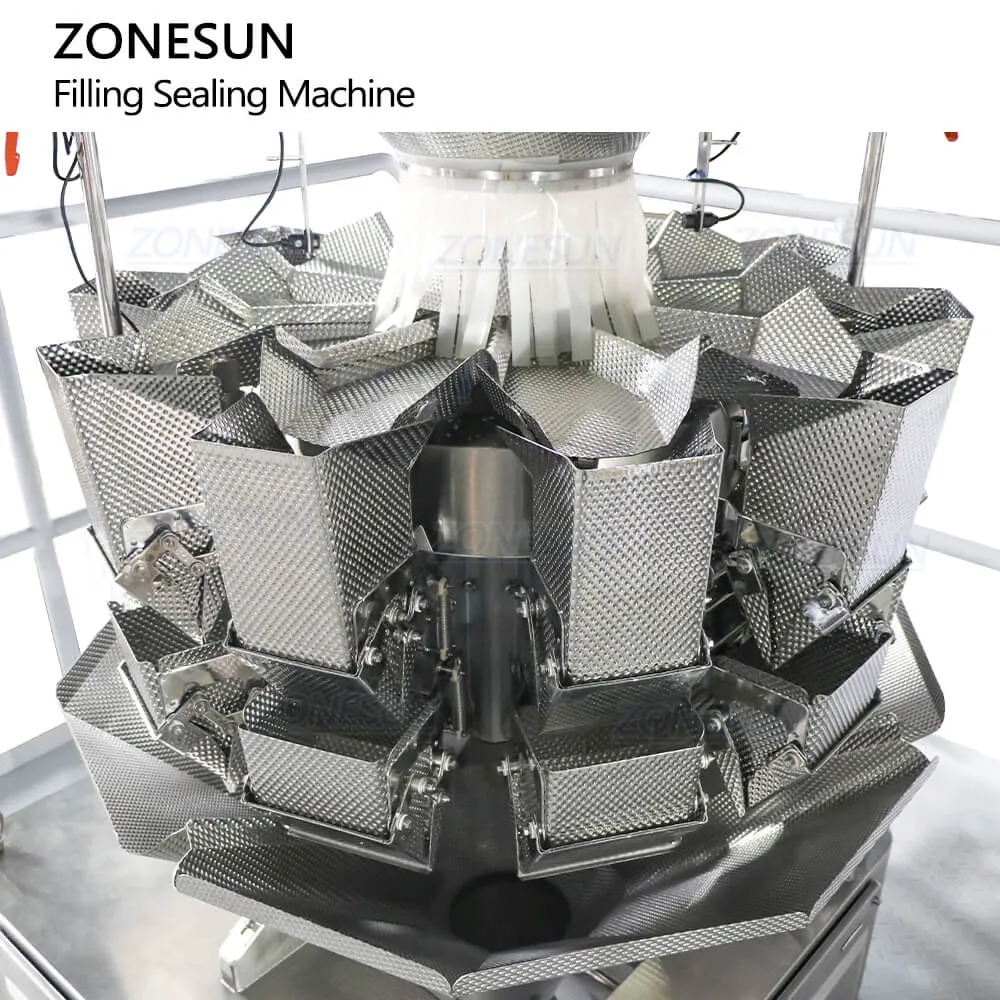

Equipped with 10 heads weighing device, this machine can control the amout of material poured from small hopper automatically,so as to ensure that the final filling amount is as consistent as possible with the set filling value.

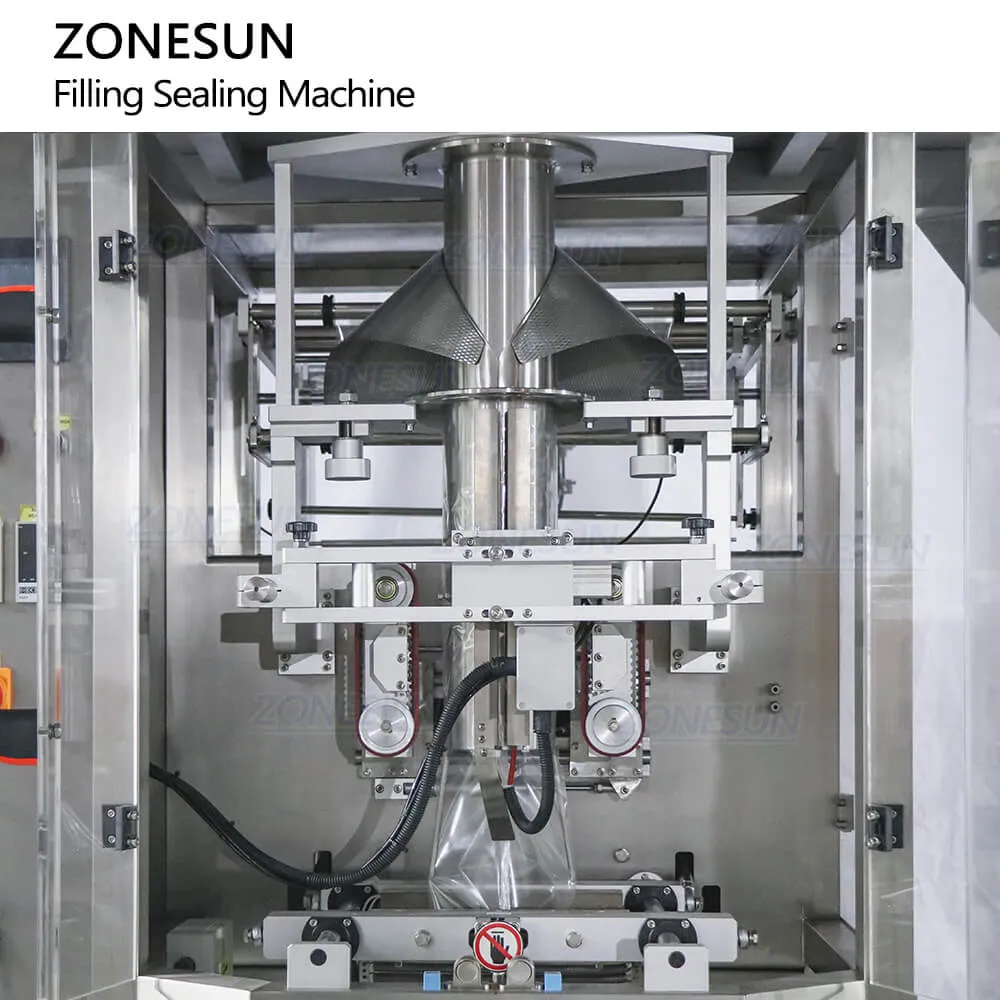

This machine can form package bags and seal them.The sealing temperature can be adjusted according to different kinds of package film.Different kinds of sealing method can be customized as production need.

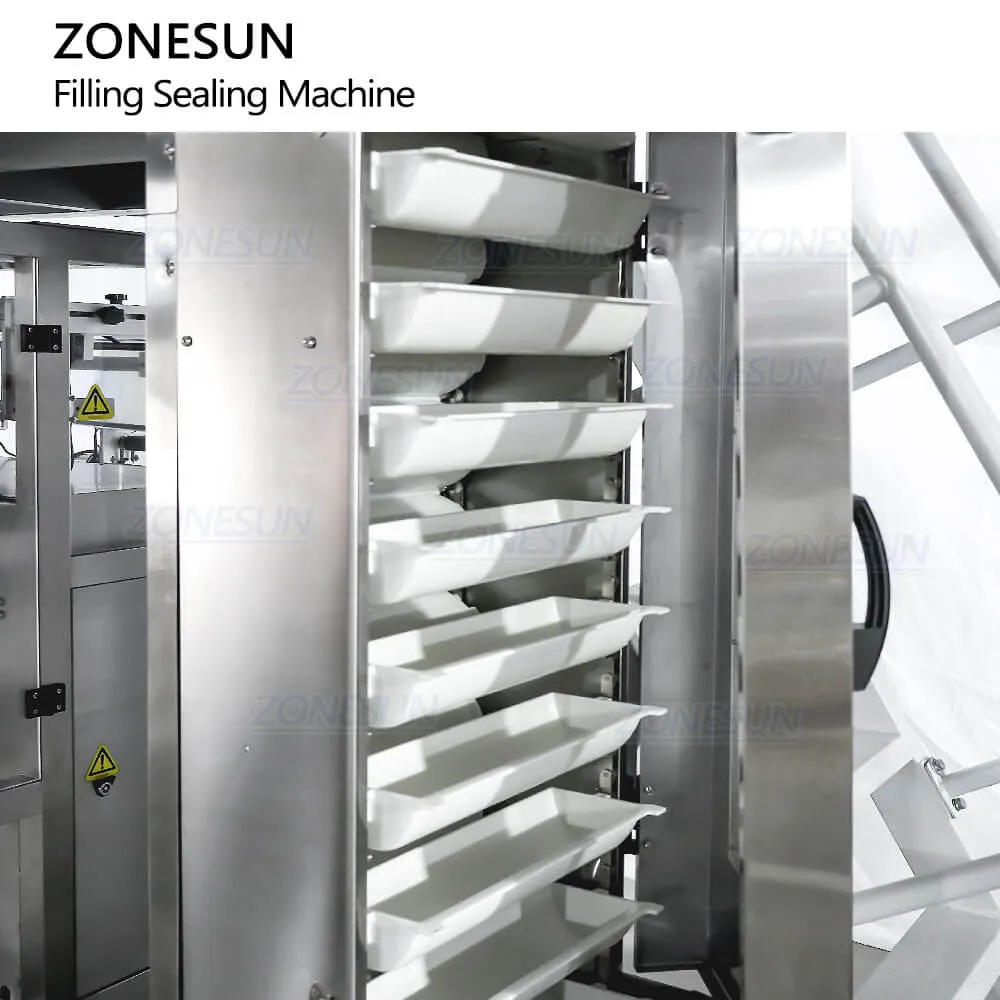

Equipped with Z type elevator, this can supply filling material in time.With this, operator can saves working labor and reduce production error.It realizes the full automated production.

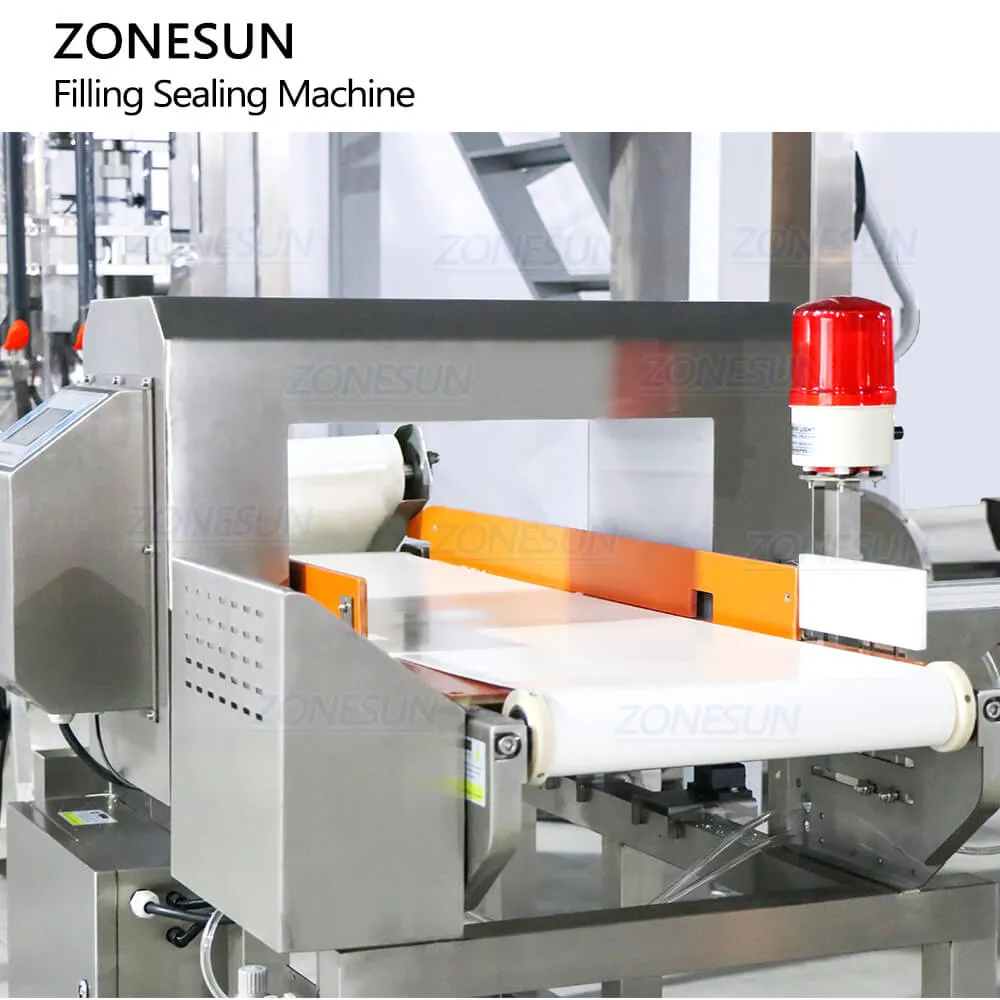

Work with the metal detecting machine, this can detect unqualified products containing metal components and improves production quality.
